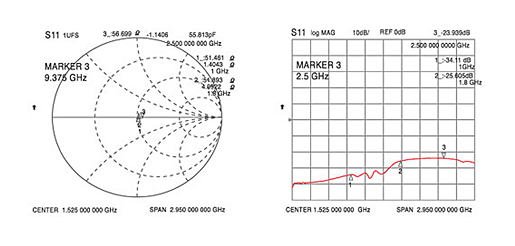

- ART SERIES - ADX SERIES - APD SERIES - ADC SERIES - ACT SERIES - APT SERIES - ABT SERIES - ACF-C820 - ALM SERIES - ADP SERIES - AFC SERIES - ACAT SERIES - ACRJ SERIES - DAB ANTENNA FOR SINGLE INPUT RECEIVER POWER TERMINATIONS (Model # : APT SERIES)   Description   • The APT series is designed to have a low VSWR to high power application. These terminations will handle from 30 to 120 watts continuous power. Typical VSWR is 1.2. These can be derated for flange temperatures up to 150°C (see power de rating chart)   Specifications   Model No. APT-30 APT-60 APT-120 APT-150 Frequency Range DC ~ 2.0 GHz DC ~ 2.0 GHz DC ~ 2.0 GHz DC ~ 2.0 GHz VSWR 1.20:1max. 1.20:1max. 1.20:1max. 1.20:1max. Impedance 50 ohm 50 hm W 50 hm 50 hm Average Power 30 W 60W 120 W 150 W Peak Power 2 kW 2 kW 2 kW 2 kW Dimension(W×L×H) [mm(inch)] 100×49.5×76.5 (3.94×1.95×3.01) 115×100×78 (4.53×3.94×3.07) 200×120×140 (7.88×4.73×5.51) 100×128×116 (3.94×5.04×4.57)   Plotting Chart
