FEEDTHRU CAPACITORS (Model # : AFC SERIES) |
| |
|
Description |
| |
| •
The AFC series is a feed through
capacitor (EMI filter) with extremely
high self resonance frequency.
It can be mounted and soldered
into metal cases with threaded
holders and sealed with resin.
This EMI filter is reliable over
a wide range of frequency and
well suited for high frequency
noise reduction. |
|
|
| |
|
Application |
| |
| • RF and
microwave module DC bias feed thru. |
| |
Specifications |
| |
Model
NO.
|
AFC-102P-10A
|
AFC-102P-10AG |
AFC-222P-10A |
AFC-302P-10A |
AFC-552P-10A |
| Capacitance |
1000 pF min. |
1000 pF min. |
2200 pF min. |
3000 pF min. |
5500 pF min. |
| Capacitance Tolerance |
+100 ~ 0 pF |
+100 ~ 0 pF |
+100 ~ 0 pF |
+100 ~ 0 pF |
+100 ~ 0 pF |
| Rated Voltage[V] |
50Vmax. |
50Vmax. |
50Vmax. |
50Vmax. |
50Vmax. |
| Rated Current[] |
10Amax. |
10Amax. |
10Amax. |
10Amax. |
10Amax. |
| Temperature Range |
-25 ~ +85 °C |
|
| |
|

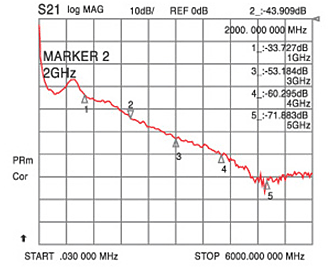

Specifications |
| |
|
| |
|
Equivalent Circuit |
| |
|
| |
|
|
|
|
