COAXIAL TERMINATIONS (Model # : ACT SERIES) |
| |
|
Description |
| |
•
LOW COST
• LOW VSWR |
|
|
| |
| ACTIPASS coaxial termination
for RF and microwave application has low VSWR
through 18GHz. These versatile coaxial terminations
are cost effective and high performance termination.
Type-N connector is also available. |
| |
Specifications |
| |
Model
No.
|
ACT-50SM1
|
ACT-50SM2
|
ACT-50SM3
|
ACT-50SM4
|
ACT-50SM5
|
ACT-50SM6 |
Frequency
Range |
DC to 12 GHz |
DC to 18 GHz |
DC to 12 GHz |
DC to 18 GHz |
DC to 8 GHz |
DC to 4 GHz |
| VSWR |
1.3:1max. |
1.3:1max. |
1.2:1max. |
1.2:1max. |
1.1:1max. |
1.05:1max. |
| Power |
0.5 W max. |
0.5 W max. |
0.5 W max. |
0.5 W max. |
0.5 W max. |
0.5 W max. |
|
| |
|

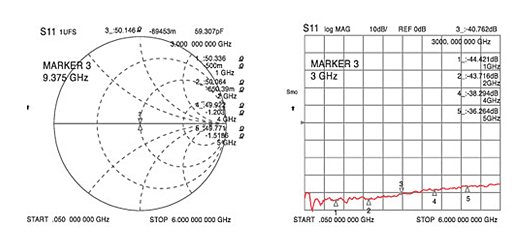

Plotting Chart |
| |
| |
| |
|
|
|
|
