18GHz TRANSMITTER |
| |
|
| |
Description |
| |

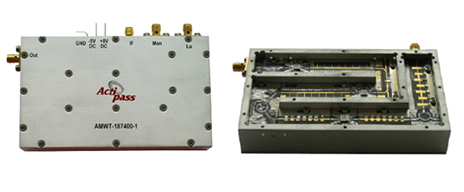

| • AMWT
series are transmitter module of 18GHz band.
It converts and amplifies IF frequency of
2GHz band (option 1GHz band) to 18GHz band.
Moreover local frequency of this module has
the function of multipling 2 by input frequency
of 8~9GHz band. |
|
|
Applications |
| |
• Satellite
Communication
• Short Haul Video & Digital Transmission
system
• Mobile Repeater System
• Wireless Private System
• Others |
| |
Specifications |
| |
Parameters
|
AMWR-187400 |
| RF Frequency Band[GHz] |
17.7 ~ 19.7 |
| IF Frequency[MHz] |
2000 ± 400 / 800 ± 400 (Option) |
| IF Output Power[dBm] |
-10 nominal(variable) |
| Output Power[dBm] |
+23 |
| Local Frequency[GHz] |
8 ~ 9 |
| Supply Voltage |
+8(-5)Vdc.500mA(max.) |
| In/Out Connector |
SMA(F) |
| Operating Temp. |
-30 ~ +60 |
| Dimension (W x L x H)[mm] |
70 x 117 x 25 max. |
|
| |
|
|
|
|
