18GHz RECEIVER |
| |
|
| |
Description |
| |

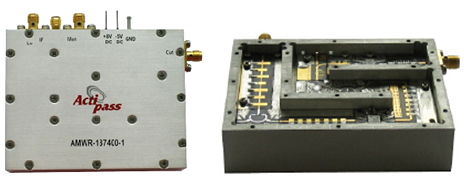

| • AMWR
series are receiver module of 18GHz band.
It converts 18GHz band to IF frequency of
2GHz band (option 1GHz band) and has the circuit
of IF Amplifier (AGC circuit). Moreover, local
osc. of this module has the function of multipling
2 by input frequency of 8~9GHz band. |
|
|
Applications |
| |
• Satellite
Communication
• Short Haul Video & Digital Transmission
system
• Mobile Repeater System
• Wireless Private System
• Others |
| |
Specifications |
| |
Parameters
|
AMWR-187400 |
| RF Frequency Band[GHz] |
17.7 ~ 19.7 |
| Noise Figure[dB] |
3.5 Type(4max.) |
| IF Frequency[MHz] |
2000 ± 400 / 800 ± 400 (Option) |
| IF Output Power[dBm] |
-10 nominal(variable) |
| AGC[dB] |
30 |
| Local Frequency[GHz] |
8 ~ 9 |
| Supply Voltage |
+8(-5) Vsc.400mA(max.) |
| In/Out Connector |
SMA(F) |
| Operating Temp. |
-30 ~ +60 |
| Dimension (W x L x H)[mm] |
70 x 90 x 25 max. |
|
| |
|
|
|
|
