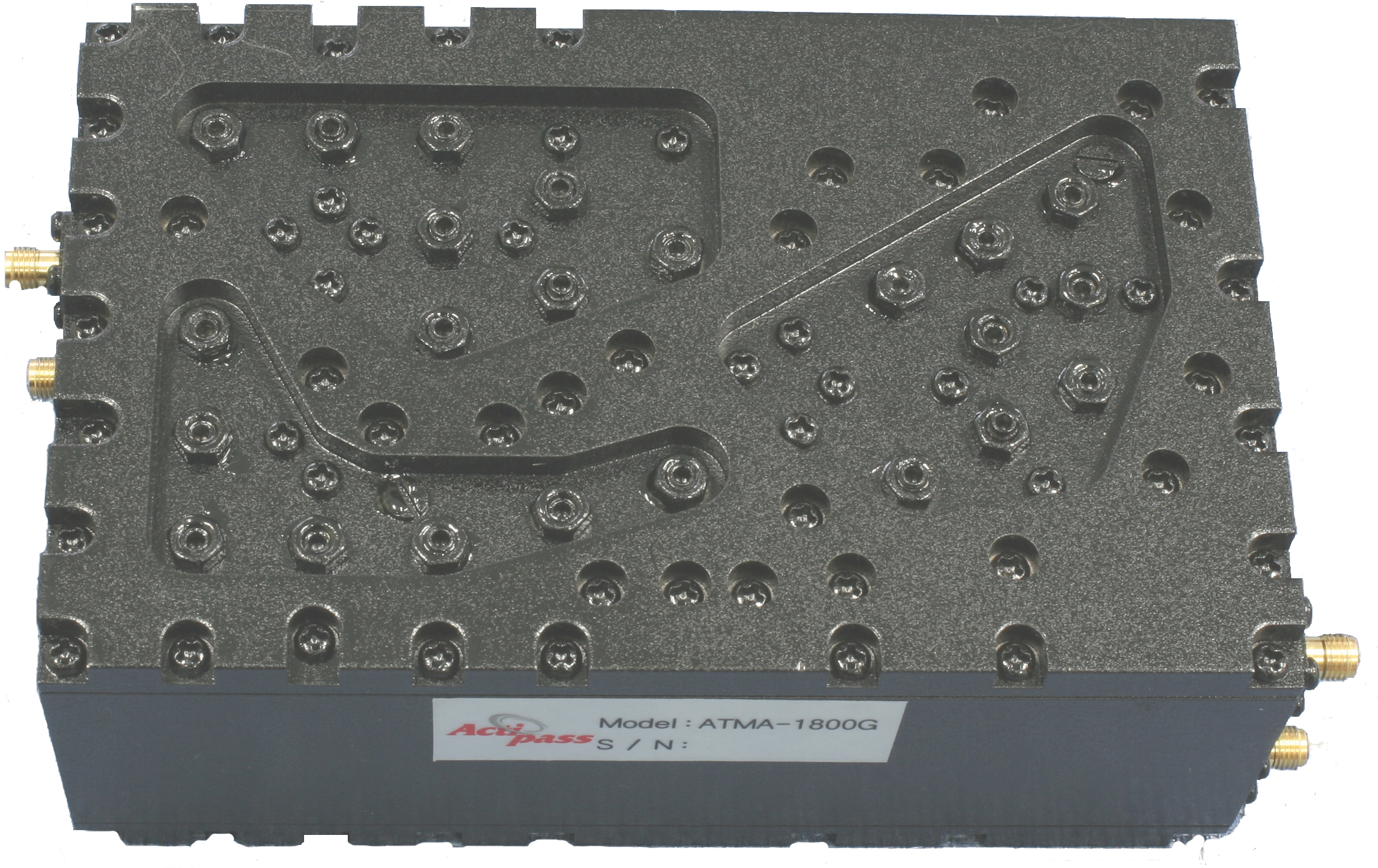

 Dual Channel TMA for GSM (ATMA-1800G) |
| |
|
| |
Description |
| |
• The Actipass Tower Mounted Amplifier comprises of high Q Band pass filter,
very low loss switch, and low noise LNA with circuit for By-Pass mode.
• We especially design with all active components intergrated within the filter body providing a reliable,
compact size and lightweight TMA solution |
|
|
Features |
| |
• Compact size, lightweight, high performance
• Dual channel
• Improved base station sensitivity
• High reliability with by pass-mode |
| |
Technical Specification |
| |
| No. |
General Requirements |
Specification |
Remark |
| 1 |
Frequency Range |
Uplink band : 1710 ~ 1730MHz,
Downlink band : 1805 ~ 1825MHZ |
|
| 2 |
Upink Gain |
15dB ±1dB |
|
| 3 |
Uplink Noise Figure |
1.6dB max. |
|
| 4 |
Downlink Insertion Loss |
0.5dB typ. (0.7dB max.) |
Over operating Temperature. |
| 5 |
Return Loss |
Downlink input |
18dB min. |
|
| Downlink Output |
18dB min. |
|
| Uplink Input |
18dB min. |
|
| Uplink Output |
15dB min. |
|
| 6 |
Pass Band Ripple |
Downlink |
0.2dB max. |
|
| Uplink |
0.5dB max. |
|
| 7 |
Down Link Output power |
50Watt max. |
GSM Signal |
| 8 |
Uplink IP3 |
25dBm min. |
|
| 9 |
Uplink P1dB |
10dBm min. |
|
| 10 |
Insertion Loss @Uplink Bypass Mode |
2dB max. |
|
| 11 |
Operating Temperature: |
-30 ~ +70℃ |
|
| 12 |
Voltage |
13V DC on RF cable |
Operating Range (5.5V~30V) |
| 13 |
Current |
250mA max. |
|
| 14 |
Connector |
SMA(F) |
|
| 15 |
Size (Length X Height X Width) |
160mm X 60mm X 100mm |
Exclude connectors |
|
| |
|

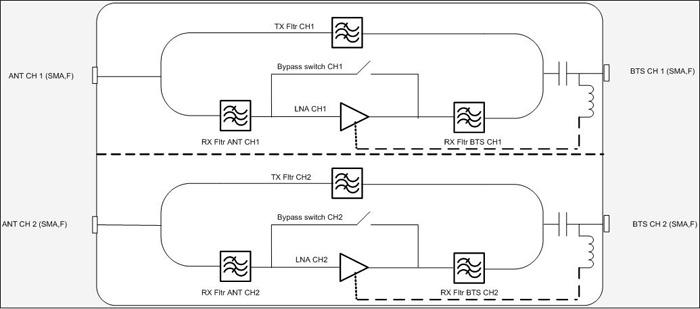

Functinal Block Diagram |
| |
| |
|
|
|
|
