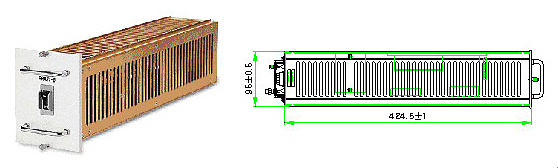

SUB SYSTEM (Model # : RRA21 SERIES) |
| |
|
| |
Description |
| |
| •
The RRA21 series are suitable for receive
stage of Base station and consist of
a LNA at input stage, a 2-way splitter
and five 4-way splitters. The signal
that amplified by LNA divided into 16
path through a 2-way and five 4-way
splitters. |
|
| |
Specifications |
| |
| Parameters |
Specification |
| Frequency Range |
824～849㎒ |
| Operating Temperature |
-30℃～+50℃ |
| DC Power |
+18～+30V |
| Gain |
23.7dB min. |
| Gain Flatness |
±0.5dB |
| Noise Figure |
Room Temp. |
1.3 dB max. |
| -30℃～+50℃ |
1.3 dB max. |
| P1dB |
7 dBm min. |
| PIP3 |
Room Temp. |
21 dBm min. |
| -30℃～+50℃ |
19 dBm min. |
| Isolation |
20 dB min. |
| Coupling Value |
34 dB min. |
| VSWR |
Input Port |
1.5 : 1 max. |
| Output Port |
1.5 : 1 max. |
| Connector Type |
Input Port |
SMA(F) |
| Output Port |
DIN(F) |
| Coupling Port |
SMA(F) |
| Gain Variation |
-10℃～+60℃ |
± 1.5 dB |
|
| |
|
|
|
|
