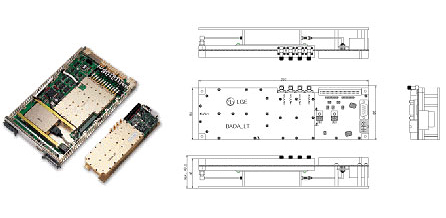

MONITOR SYSTEM (Model # : BADA SERIES) |
| |
|
| |
Description |
| |
| •
BADA is a monitor system of base station.
The module watches the signal and states
to ensure the base station work properly.
Other frequency bands of monitor system
are also available upon request. |
| |
| *
Specifications can be modified upon
customer’s request. |
|
| |
Specifications |
| |
Model
|
AP-BADA-D
|
AP-DATA-L
|
AP-BADA_LT/LC |
AP-BADA-E
|
| Frequency Range |
DCS |
K-PCS |
US-PCS |
| Insertion Loss [dB] |
RX |
TX |
RX |
TX |
RX |
TX |
TX |
RX |
| 32.5 |
33.2 |
32.5 |
33.2 |
25 |
25.7 |
33.2 |
32.5 |
| Isolation [dB] |
SPSP |
30 Min. |
| SPDT |
30 Min. |
| maximum |
65 Min. |
| RX MAXI |
30 min. |
| Attenuation |
1dB ~ 50dB |
Step 1, 2, 4, 8,16,32 ( Total50dB) |
| Ripple [dB] in the Passband |
5 peak-peaK |
4.5 peak-pea |
5 peak-pea |
6 peak-pea |
|
| |
|
|
|
|
