SAMDCS-M |
| |
|
| |
Description |
| |
•

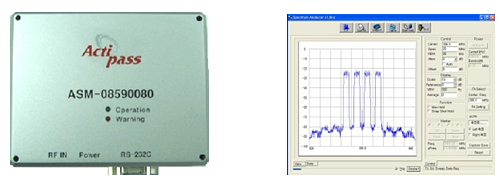

MONITORING SPECTRUM OF KOREA DCS FULL
BAND
• GRAPHIC USER INTERFACE (PC SCREEN)
• PORTABLE
• SMALL SIZE AND WEIGHT
• BEST PRICE VERSUS PERFORMANCE
• LOW POWER CONSUMPTION
• APPLICATION FOR MOBILE REPEATER
AND BASE STATION MANAGEMENT |
|
| |
|
Function |
| |
•
Center Frequency
• Span
• RBW
• VBW
• Manual Attenuator
• Auto Attenuator
• Input Power Offset
• Scale
• Reference Level
• Average Count
• maxhold
• Snap Shot Hold
• Marker Function
• Channel Power
• ACPR
• Capture Save
• Over Power Alarm |
|
| |
Specifications |
| |
| Parameters
|
Specifications
|
| Frequenct[MHz] |
819~899(80MHz) |
| Input Power[dBm] |
-70 ~ +10 |
| Dynamic Range[dB] |
80 |
| Resolution Bandwidth[KHz] |
30 |
| Video Bandwidth[Hz] |
300 |
| Amplitude Accuracy[dB] |
±1.0@10dB Scale |
| Input Impedanxe[Ω] |
50 |
| Scale[dB] |
10/5/2/1 |
| Sweep Time[sec] |
3.3 (80MHz) |
| Reference Level[dBm] |
+20 ~ -50 |
| Display Unit |
dBm |
| Display |
GUI |
| Connector |
SMA Female(RF Input) |
| D-SUB 9pin (RS-232) |
| DC Pin Jack |
| Dimension(W x L x H)[mm] |
117 x 92 x 26 |
| Weight[g] |
TBD |
| DC Input Voltage[V]
| min. +8 ~ max. +17 |
| EC Current[mA] |
9V / 600mA |
|
|
|
|
|
|
|
|
