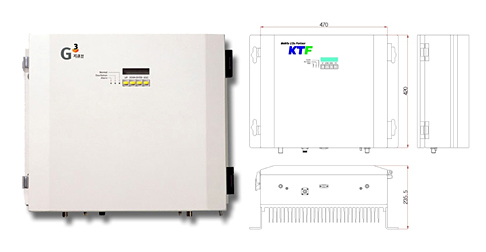

REPEATER FOR WCDMA (Model # : RACE-L) |
| |
|
| |
Description |
| |
•
Low cost to extend cell coverage
• WCDMA multi FA, wide band Repeater
• For WCDMA Service
• Easy to install
•
Automatic Gain Control (AGC)
•
Microscopic oscillation check function
• Fast isolation check function
• Easy GUI(Graphic User Interface),
Detail manuals
• Network
Management System (NMS) |
|
|
Specifications |
| |
Parameters
|
Specifications |
Remarks |
| Frequency
Range |
Down
Link |
2150
~ 2170MHz |
|
| Up
Link |
1960
~ 1980MHz |
|
| Pass
Band Ripple |
2dB
p-p |
|
| Gain
Control Range |
Down
Link |
65
~ 95dB |
|
| Up
Link |
65
~ 95dB |
|
| max.
Output Power |
Down
Link |
>
+37dBm |
@
4FA |
| Up
Link |
>
+26dBm |
| Tx
/ Rx Isolation |
min.
110 dB |
|
| VSWR |
1.5
: 1 max. |
|
| Connector |
In
/ Out N-Type Female |
|
| Time
Delay |
<
5µs |
|
| Impedance |
50O |
|
Spurious
Emission
(Out Band) |
9KHz
~ 150KHz |
-13dBm |
RBW
1KHz |
| 150KHz~30MHz |
RBW
10KHz |
| 30MHz~1GHz |
RBW
100KHz |
| 1GHz~12.75GHz |
RBW
1MHz |
|
Down Link
Item |
| Error
Vector Magnitude (EVM) |
<
17.5% |
|
| Peak
Code Domain Error (PCDE) |
<
-35dB |
@
SF=256 |
Output
Over
Power Control |
Application
Way |
ALC |
|
| Control
Range |
+28dBm |
|
Spurious
Emission
(In Band) |
±2.5MHz |
-22dBm |
+37dBm/4FA
RBW 30KHz |
| ±3.5MHz |
-34dBm |
| ±4.0MHz |
-21dBm |
| ±8.0MHz |
-25dBm |
+37dBm/4FA
RBW 1MHz |
| ACLR |
±5.0MHz |
45dB |
|
| ±10.0MHz |
50dB |
|
| Monitoring
Port (Directional Coupler) |
30dB
±1dB |
SMA
Type |
|
Up Link Item |
| Noise
Figure |
<
5dB |
|
| Dimension
(W x D x H) [mm] |
470
x 420 x 212 |
|
|
| |
|
|
|
|
