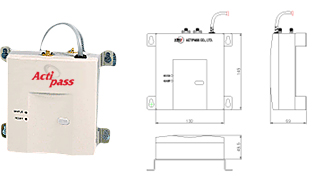

MICRO REPEATER FOR DCS (Model # : ARM-880) |
| |
|
| |
Description |
| |
|
The repeater ARM-880 extends base
station coverage to shadow areas
caused by large buildings and
other structures that can obstruct
signal. The ARM-880 is suitable
to install small buildings, underground
parking lots, subway stations
and shopping malls etc. It is
offered increasing signal strength
and high quality communication
with low cost. The unit is easy
to install and housed in a rugged
cover. |
|
|
| |
Specifications |
| |
| Parameters
|
Specifications |
|
Frequency Range
|
Forward : 880 ~ 890 MHz
|
|
Reverse : 835 ~ 845 MHz
|
|
Input Level
|
-60 ~ -40 dBm
|
|
Output Level
|
10 dBm / total
|
|
Gain
|
|
|
Gain Control
|
|
|
Selectivity
|
9.4 MHz @ 3dB BW min.
|
|
10.9 MHz @ 50dB BW max
|
|
Spurious
|
In Band (Fc±750KHz) : -45 dB / RBW 30KH
|
|
Out Band (Fc±1.98MHz) : -55 dB / RBW 30KHz
|
|
Over Power Protection Level
|
+7 ~ +17 dBm
|
|
Connector
|
SMA (female)
|
|
Power Supply
|
AC 110/220V ±15%
|
|
Dimension (W x H x L) mm(Inch)
|
130 x 50 x 210 mm (5.12 x 1.97 x 8.27 inch)
|
|
Weight [Kg]
|
1.5 max.
|
|
| |
|
|
|
|
